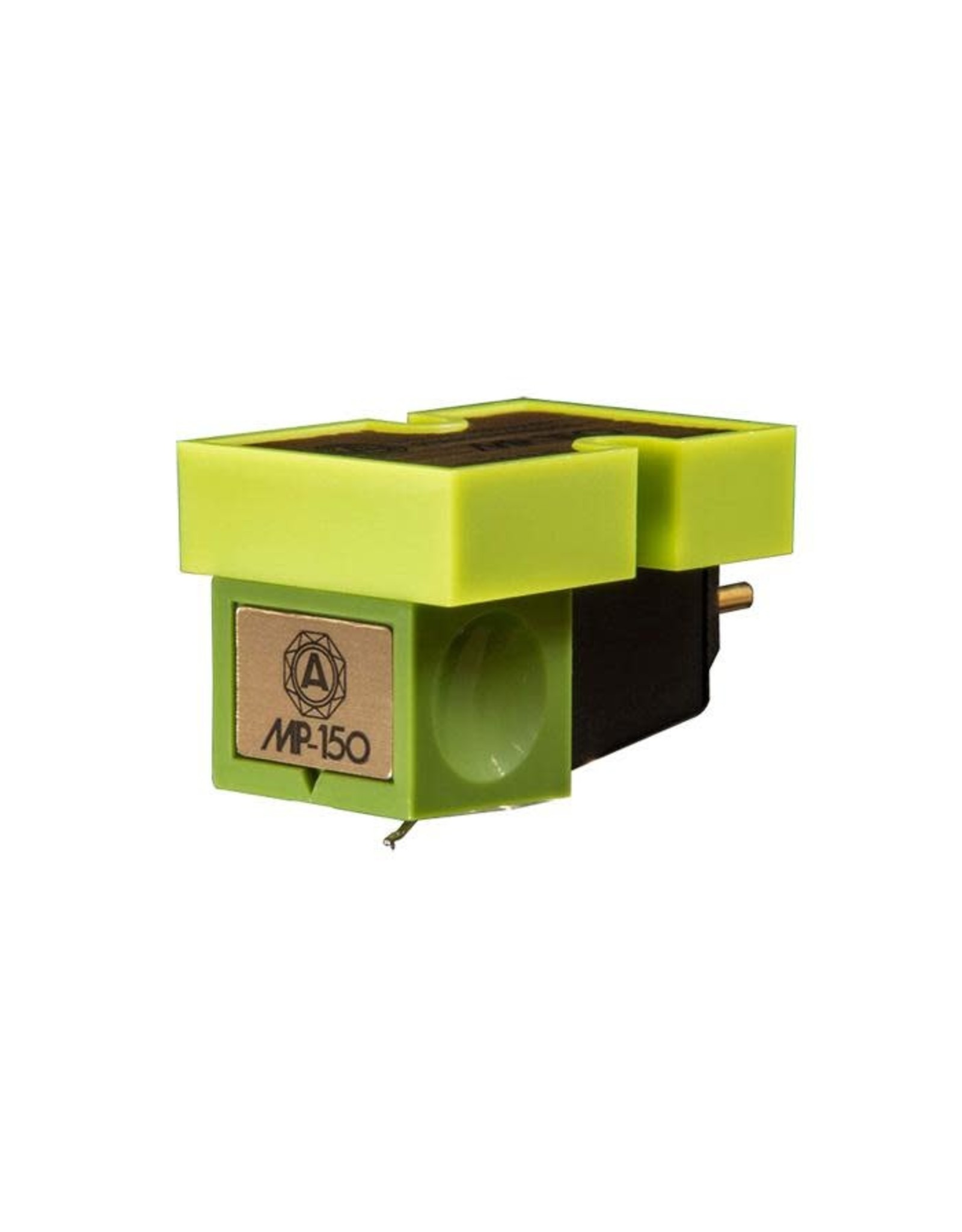

Nagaoka MP-150 Cartridge

The Nagaoka MP-150 phonograph cartridge offers superior clarity, detail and dynamic contrast and offers fine solid bass, superb fluidity across the frequency spectrum, and sweet highs.

Features:

• Superfine polished special eliptical diamond stylus
• Powerfull samarium cobalt magnet
• Hardened low-mass, tapered aluminum alloy cantilever for very high fidelity
• Carbon fibre reinforced plastic shoe
• Anti ferro magnetic permalloy shield casing

Specifications:

Type: Moving permalloy
Cantilever: Hardened, low-mass tapered aluminum alloy
Stylus type: Superfine elliptical bonded diamond with 0.4 x 0.7 mil
Weight: 6.5 g
Output voltage @ 1kHz,5cm/sec: 4.5mV
Frequency response: 20Hz-20kHz
Channel balance @ 1kHz: > 1.5dB
Channel separation @ 1kHz: > 24dB
Recommended loading: 47k ohms
Dynamic compliance: 6.0 x 10-6 cm/dyne
Static compliance: 18 x 10-6 cm/dyne
Tracking force range: 1.5 - 2.0 g
Stylus replacement: Nagaoka JN-P150

The stylus replacement interval varies depending on the using conditions. But for general use at home, the reference time is between 150-200 hours in which the stylus begin to wear and the tone quality deteriorates. Recommend replacing the stylus as aerly as possible to enjoy clear tone for a long time and not to damge the disc grooves.
